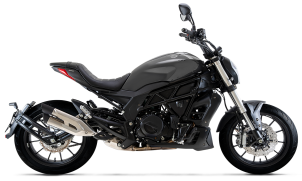

BENELLI 502C

BENELLI 502C

BEN016
Benelli Motor Malaysia | Benelli Motor Selangor | Benelli Motor Kuala Lumpur (KL)

Product Description


YAMAHA NVX (Scooter)
Engine

The 502C is powered by the highly advanced 499cc twin-cylinder engine, 4-valve technology and double overhead camshafts for maximum power, fuel injection for precise throttle response, and a six-speed gearbox.

YAMAHA NVX (Scooter)
Brakes

The braking system on the front end consists in double semi-floating 260 mm diameter discs, and the back end a 240 mm disc, with 4-piston callipers in the front and a single piston on the back.

YAMAHA NVX (Scooter)

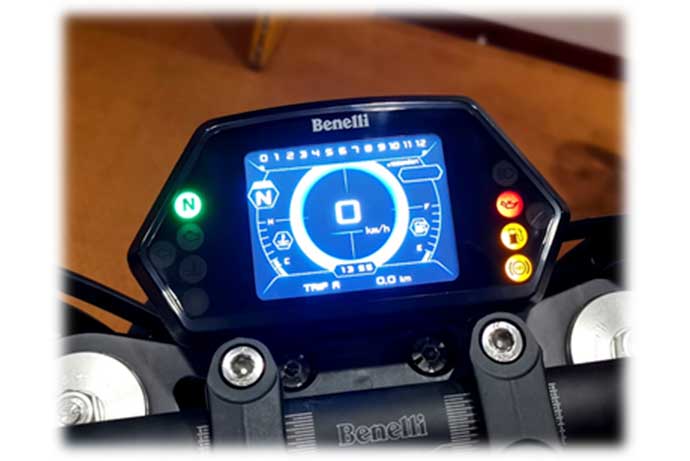

LCD Speedometer

The all-digital display cluster delivers total situational awareness and enhances its aggressive lines with dual mode display screen (day and night).

YAMAHA NVX (Scooter)
KYB Suspension

High quality suspension includes 41mm inverted fork up front (with 125mm of stroke) and a Rear swing arm with central shock absorber spring preload adjustable. The combination offers superb wheel control and a comfortable ride.

YAMAHA NVX (Scooter)
Mammoth Fuel Tank Capacity

The tank has a capacity of 21 litres, guaranteeing many kilometres of autonomy.





click me to view colors

YAMAHA 135LC

YAMAHA 135LC

YAMAHA 135LC


Specification


ENGINE

TYPE
    2-Cylinder / 4-Stroke / 8-Valve

MAX TORQUE
    45 Nm / 6,000 r/min

LUBRICATION SYSTEM
    Pressure Splash Lubrication

IGNITION
    TLI

BORE X STROKE
    69 x 66.8mm

COMPRESSION RATIO
    11.5:1

CLUTCH TYPE
    Wet Multi-plate

DISPLACEMENT
    500 c.c.

FUEL SYSTEM
    EFI

FINAL DRIVE TYPE
    Chain

MAX POWER
    35 kW / 8,500 r/min

TRANSMISSION
    6 Speed

STARTER
    Electric

CHASIS

FRONT SUSPENSION
    135mm Travel

FRONT TYRE
    120/70ZR17

WHEELBASE (MM)
    1,580

REAR SUSPENSION
    60mm Travel

REAR TYPE
    160/60ZR17

GROUND CLEARANCE (MM)
    210

FRONT BRAKE
    Dual Disc 280mm

DRY WEIGHT (KG)
    220

FUEL CAPACITY (LITER)
    21.5

REAR BRAKE
    Disc 240mm

SEAT HEIGHT (MM)
    800

BATTERY
    12V8Ah(YTX9-BS)
