Product Description
| |
 |
Engine 244cc
|
| |
| The 244cc engine uses 4-valves and is supported by SOHC to provide more power overall while offering a maximum power of 24.8HP at 8,750rpm and 23.0Nm of torque at 6,750rpm. |
|
|
|
|
 |
| Dual Channel Anti-Lock Brake System (ABS) |
| |
| Provides optimal protection with a dual channel ABS system for maximum safety during emergency braking. |
|
|
|
|
 |
Power Connector 12V10A
|
| |
| Can be connected to any equipment. |
|
|
|
|
|
| |
 |
| LED Front Lights |
| |
| Lights up the road well and is very clear especially when riding at night. |
|
|
|
|
 |
| Stylish Backlights |
| |
| Modern design without neglecting safety aspects. It also helps other road users to be aware of your whereabouts. |
|
|
|
|
|
 |
| LCD Exposure Screen |
| |
| Display the necessary information easily, quickly and accurately. |
|
|
|
|
|
| |
 |
|

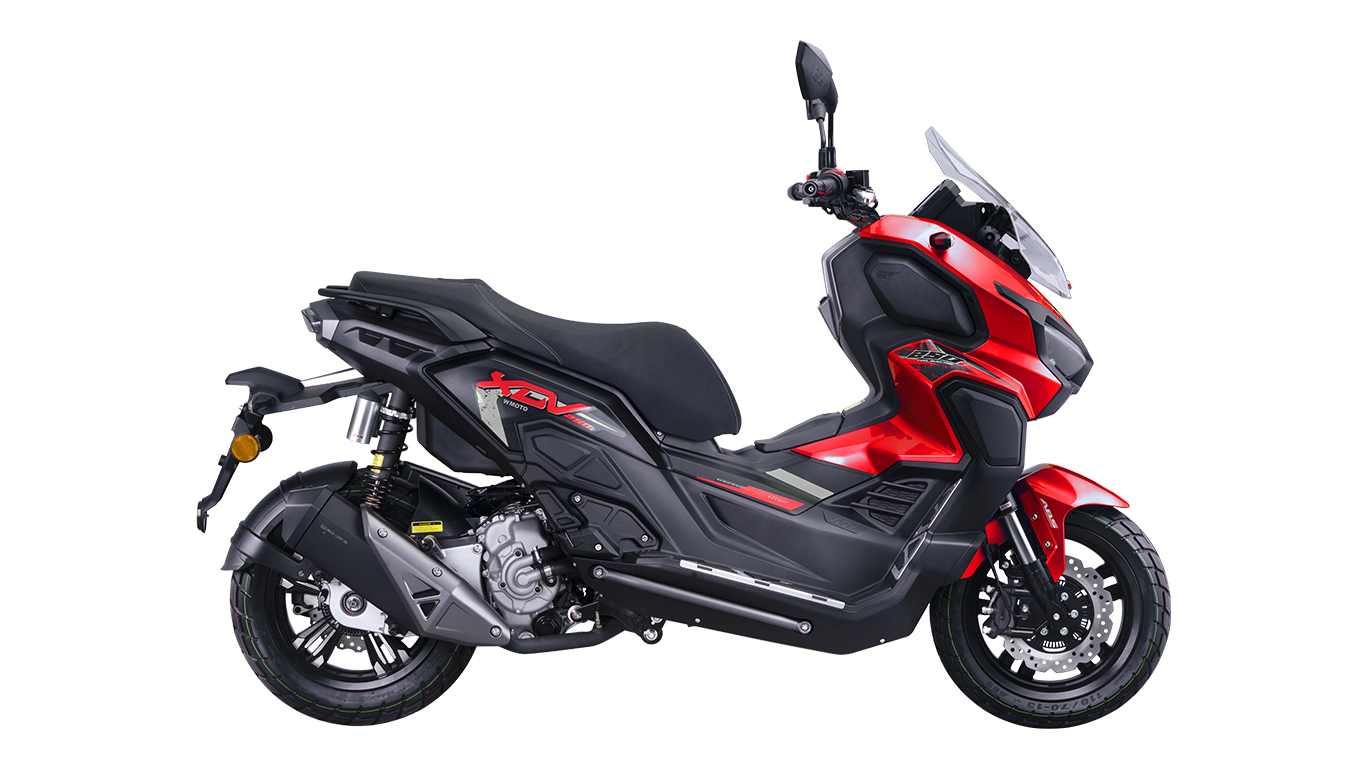

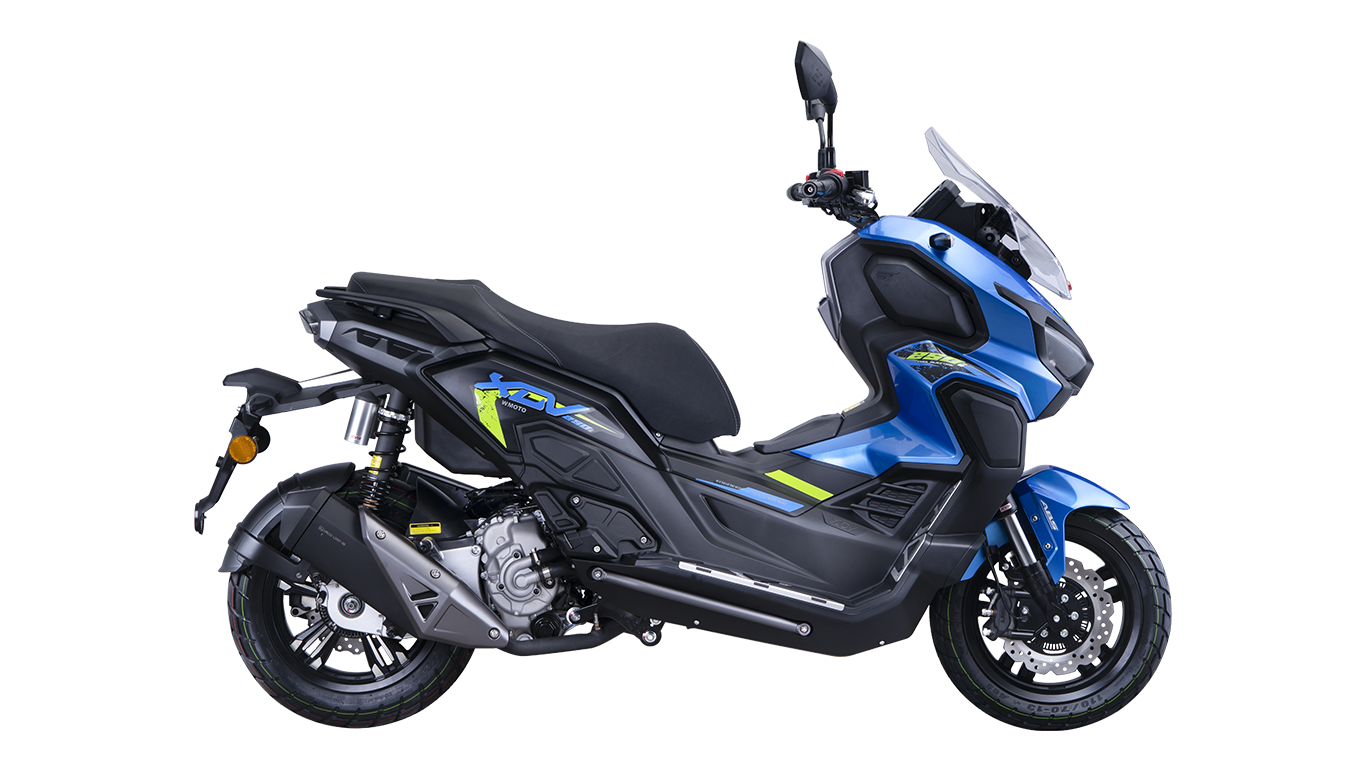

click me to view colors |
|
|
|
|
|
|
|
| |
Specification
|
| |
| ENGINE |
|
| |
 |
|
TYPE |
| |
|
4-Stroke, Single Cylinder, 4-Valve, SOHC |
| |
|
|
MAX TORQUE |
| |
|
23.0Nm at 6,750rpm |
| |
|
|
BORE X STROKE |
| |
|
72 X 60 |
| |
|
|
COMPRESSION RATIO |
| |
|
11.0:1 |
| |
|
|
DISPLACEMENT |
| |
|
244 |
|
|
|
|
TRANSMISSION |
| |
|
Conveyor belts |
| |
|
|
MAX POWER |
| |
|
24.8Hp at 8,750rpm |
| |
|
|
STARTER |
| |
|
Electric |
| |
|
|
FUEL SYSTEM |
| |
|
Electronic Fuel Injection (EFI) |
| |
|
|
LUBRICATION SYSTEM |
| |
|
Power Lubricant |
|
|
|
|
CLUTCH TYPE |
| |
|
Automatic CVT |
| |
|
|
IGNITION |
| |
|
TLI |
| |
| |
|
|
| |
|
|
|
|
| |
| CHASIS |
|
| |
|
|
FRONT SUSPENSION |
| |
|
Reverse Telescopic |
| |
|
|
FRONT TYRE |
| |
|
110/70-13 |
| |
|
|
REAR TYRE |
| |
|
130/70-13 |
| |
|
|
OVERALL LENGTH (MM) |
| |
|
1,940 |
| |
|
|
FUEL CAPACITY (LITER) |
| |
|
13.5 |
|
|
|
|
OVERALL WIDTH (MM) |
| |
|
780 |
| |
|
|
BATTERY |
| |
|
12V10Ah |
| |
|
|
FRONT BRAKE |
| |
|
Disc with ABS, 250mm |
| |
|
|
DRY WEIGHT (KG) |
| |
|
159 |
| |
|
|
REAR BRAKE |
| |
|
Disc with ABS, 220mm |
|
|
|
|
WHEELBASE (MM) |
| |
|
1,390 |
| |
|
|
SEAT HEIGHT (MM) |
| |
|
800 |
| |
|
|
GROUND CLEARANCE (MM) |
| |
|
160 |
| |
|
|
REAR SUSPENSION |
| |
|
Telescopic Shock Absorber |
| |
| |
|
|
| |
|
|
|
|
| |
